AIR STERILIZING CEILING PANELS
# with GERMICIDAL UVC
ULTRAVIOLET LAMP (KILLING VIRUSES, BACTERIA)
|
Durable
5.5" LCD Terminals with Automatic
Face Recognition and Temperature Measurement
& Alarm for High Temperature
Fever with Voice Prompts and
signals for Access Control
Entrance Gates
# Face &
Temperature screening with or
without Masks
#
INDOOR or OUTDOOR Versions,
Zink
Alloy Metal strong durable Body
# to stop unauthorized people
(or allow all people to enter,
unless with Fever)
# to
detect and stop people with
Fever Symptom Alarm, potential carrier of Coronavirus / other Viruses
# to limit spread of Epidemic Viruses, such as CORONAVIRUS COVID-19, EBOLA, SARS, ZIKA, etc, in Entrance to Public Buildings & Transport.
# Temperature Measurement (up to
120 people/min = 7,200
/hour)
#
to detect suspects of Coronavirus
/ other viruses with Alarm Warning
and gate blocked
#
Face Recognition to alow for
access of authorized personnel
(20,000 faces + 20,000 cards +
200,000 records) with Control of
Gate
#
setup option to allow entrance
to public, unless with high
temperature
#
Voice
prompts & Gate Control
for entrances to Buildings,
Venues, Shops, public places and transport
# 2
Megapixel HD Camera #
Wide Dynamic Strong Light Suppression
# Celcius / Farenheit Display # Infrared Array Body Temperature
Sensor # Voice Prompt
# 20,000 Faces Capacity # 200,000 records
# Multiple People Simultaneous Recognition
#
Accuracy Rate: 99.9% # 0.5s
High Speed Identification #
Binocular Liveness Detection
# Online Update
# Access Control Function # Two operating modes: Touchscreen /
PC
#
Local Storage
# Mutiple Communication Modes
#
LINUX System
|
GS85FT 5.5" LCD INDOOR Terminal
with Automatic Face Recognition
and Temperature Measurement &
Alarm for High Temperature Fever
for Access Control Gates with
Voice Prompts |
GS851FT 5.5" LCD INDOOR Terminal with Dynamic Face & Temperature Recognition
for Access Control, with or
without masks, with Alarm for
unauthorized person or high temperature and voice prompts,
with sturdy durable zinc-alloy metal body
20,000 Faces, 20,000 cards,
200,000 Records,
5.5-Inch IPS Full-View,
HD
Display Screen,
0.3s High Speed Identification, voice prompts, signals to open /
close gates
GS85FT 5.5" LCD INDOOR Terminal with Dynamic Face
Recognition and Temperature
Check
for Access Control, with or
without masks, with Alarm for
unauthorized person or high
temperature |
|
LCD Terminal for FACE RECOGNITION and
TEMPERATURE CHECK with Access
Control
(Up to 120 people/min = 7,200 / hr) |
|
Multi-Face CROWD TEMPERATURE
VIDEO SCREENING SYSTEM with ALARM
(Up to 500 people/min = 30,000/hr) |
|
SMART HELMET for TEMPERATURE
SCREENING,
PEOPLE's IDENTITY &
VEHICLE PLATES Verification,
INSPECTION of Industrial
facilities, NIGHT VISION
(Up to 200
people/min = 12,000 / hr) |
|
Touch Screen Panels |
|
ELO LCD Touch Monitors |
|
DELL LCD Touch Monitor P2418HT |
|
HMI LCD Operator Panels |
|
INNOLUX, other
LCD Screens |
|
L1/L2 GPS Antennas |
|
GPS / GSM / GPRS |
|
OBSOLETE PARTS: Intel, Dell, ELO,
Rockwell, Displays, Touch Panels, Computer Boards, SSD, LCD
|
|
VFD Modules (previous Samsungs) |
|
Futaba VFD (Obsolete - NOT available), LCD, OLED, Touch Panel |
|
|

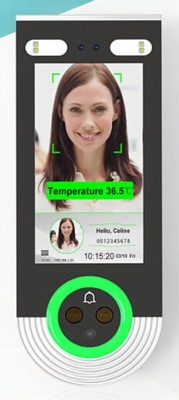

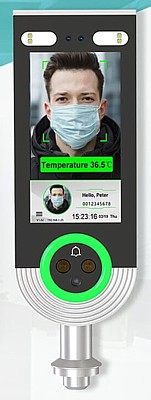

GS85FT 5.5"
LCD INDOOR Terminal for Face Recognition and Temperature Measurement
with voice prompts and signals for opening / closing gates for
meeting rooms, hotel reception, company office building entrance
GS85FT 5.5" LCD
INDOOR Terminal for Face Recognition and Temperature Measurement
with voice prompts and signals for opening / closing gates for
meetings, hotel, company office building entrance, hospital with
gate control
GS85FT 5.5" LCD INDOOR Terminal face recognition and Temperature
measurement systems with alarm with or without masks with voice
prompts and signals for controlling gates
GS85FT 5.5"
LCD INDOOR Terminal for face recognition and Temperature measurement + alarm
with voice prompts and signals for control of gates for reception, entrance, walk, gate control
|
|
|
GS85FTW 5.5"
LCD OUTDOOR Terminal with
Automatic Face Recognition and Temperature Measurement & Alarm
for High Temperature Fever, Weatherproof with voice
prompts, strong durable Zinc-Alloy metal
body, with signals for Access Control Gates |

GS85FTW 5.5" LCD OUTDOOR Terminal with Dynamic Face & Temperature Recognition,
Weatherproof, with or without masks, with voice prompt and
signals for Access Control Gates
# strong durable Zinc Alloy metal
body
20,000 Faces, 20,000 cards, 200,000 Records, 5.5-Inch IPS Full-View, HD
Display Screen, High Speed Identification.

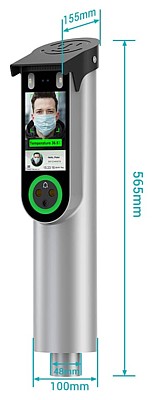

Examples of OUTDOOR Terminal with pillar (adult) and LED pillar
(adult) for Temperature Measurement and Face Recognition.
OUTDOOR LCD Terminal for Temperature measurement + alarm and face
recognition, with voice prompts and signals for accesss control
gates for entrance, walk throught, corridors, etc
5.5" LCD INDOOR &
OUTDOOR Terminals with Automatic Face Recognition and Temperature
Measurement & Alarm for High Temperature Fever, with voice
prompts, made with Zinc-Alloy Metal
strong durable body, with signals for Access Control Gates
-
Temperature detection,
the infrared array body temperature sensor, no
entry with high temperature.
-
Body temperature + face
recognition completed in 0.3 seconds.
-
Temperature
measurement distance: the recognition distance
is 0.3-1m (0.5m optimal).
-
Adopts the
temperature sensor of Belgian Melexis infrared
matrix.
-
5.5-Inch IPS
full-view and high-definition display screen
(1280x720).
-
Multiple
people simultaneous recognition, 1: N / 1:1 can
identify four people at the same time.
-
≤0.5 second
high speed identification,99.9% accuracy rate,
wide dynamic 2 Mega pixel HD camera,360-Degree
biometrics liveness recognition.
-
Voice prompts and signals for control of the
access control gates
-
Built-in card
reading module, support Mifare card.
-
Two USB
communication port, can insert USB disk to
import data, can use USB disk to upgrade and
backup data.
-
Metal body,
waterproof &smog-proof, sturdy and durable.
-
2 Options: INDOOR or
OUTDOOR
5.5" LCD Terminal for
0.5s Face
Recognition and
Temperature Measurement with Alarm for High Temperature
with voice prompts and signals for Access Control for Gates
(GS85FT 5.5" INDOOR and GS85FTW 5.5" OUTDOOR Weatherproof OPTIONS) |
| Display Screen: |
5.5-Inch IPS Full View High Definition HD Screen (1280x720), wide dynamic, |
| Two Operation Modes: |
Touchscreen / PC software |
| Camera:
|
Wide Dynamic Binocular 2 Million HD Camera |
|
Liveness Detection:
|
Support |
|
User Capacity:
|
20,000 Faces + 20,000 Cards |
|
Face Recognition: |
Support,
fast recognition of
Face |
|
Records: |
200,000 Records |
|
Recognition Way: |
1:N / 1:1 Multiple people simulation recognition, can identify 4 people at the same time |
| Identification Speed: |
≤0.5s
(= 120 people/min)
(body temperature +
face recognition in
average 0.3s)
99% accuracy,
360degree biometric
liveness recognition |
| Measurement distance: |
face recognition and temperature measurement 0.3-1m (optimum 0.5m) |
| Voice prompts / Signals: |
Voice Prompts and signals for access controls of Gates |
| Temperature Measurement |
Temperature detection, Infrared Array body Temperature Sensor (Belgian Melexis), fast measurement and indication of Temperature with alarm for high temperature Fever Symptom |
| Access control |
Support, allows to control / opening or blocking Access Gates, No Entry with high temperature |
| CPU: |
4 CoreA7 1.2GHZ |
| Storage Capacity: |
1GB DDR3 + 8GB EMMC |
|
GPU:
|
MAL400 II |
|
Communication Way:
|
two USB communication port, can insert USB disk to import data, can use UPS disk to upgrade and backup data, Built-in card reading module, support Mifare card.
OPTION: WIFI Communication |
|
Operation System:
|
LINUX |
|
Wiegand Function:
|
One Group of Wiegand Input / Wiegand Output (26/34) |
|
Working Voltage: |
DC12V/2A (DC9V-14V) |
|
Working Temperature: |
-10C to 70C |
|
Working Humidity: |
10%-90% RH |
|
Language:
|
Chinese, English, Spanish, Italian, French, Portuguese,
Russian |
|
Body Material: |
Zinc Alloy Metal Body, sturdy and durable
(INDOOR option or OUTDOOR option waterproof & smog-proof), |
|
Size / weight: |
INDOOR: 232x88x25mm x 0.5kg / OUTDOOR: 565x100x155 x 1.8kg |
|
|
Access Control Gates: Flap or
Swing Turnstiles.
GS20 flap turnstile
and GS30 swing turnstile access gates GS72
swing turnstile gate for access control
CLICK TO SEE VIDEO 1: Access Control Swing Gates
CLICK
TO SEE VIDEO 2: Access Controlled Swing Gates

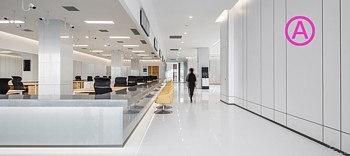

Example of the office space and the incorporated to the space:
turnstile access control with terminals for face recognition and
temperature measurement with Alarm and voice prompts
|
|
